WATER BLOCKING SWELLABLE SOFT YARNS
Water Blocking Swellable Soft Yarns
Spun water blocking swellable soft yarns for fiber optic cable:
from 20.000Nm (500 Dtx) up to 5.000Nm (2000 Dtx).
Application
Longitudinal water blocking inside cable conductor.
General water blocking and filling of large gaps.

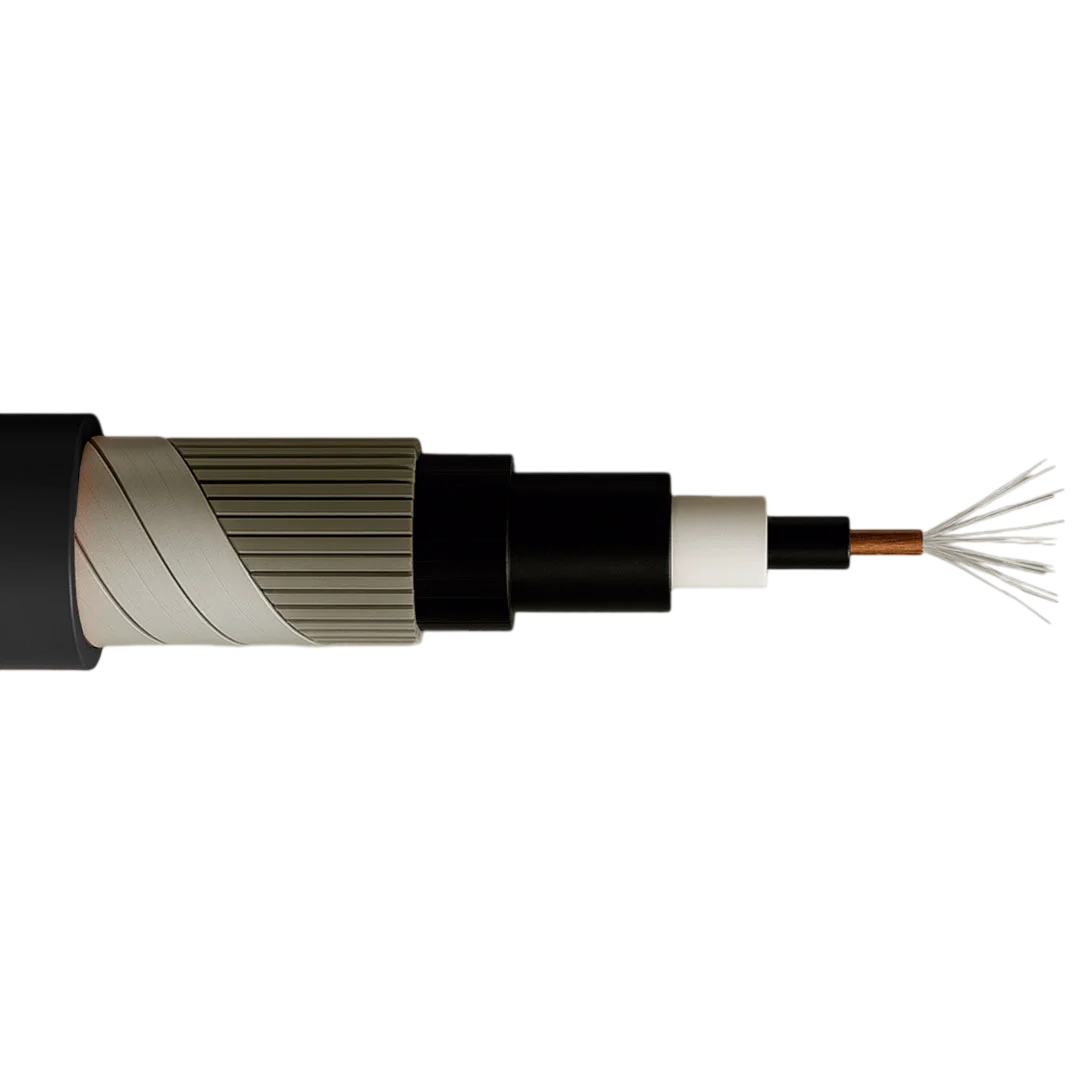

Helically winding over cable conductor elements.
Water blocking reinforcement around cable’s central members.
Range of products
Spun Water Blocking Swellable Soft Yarns for f iber optic cable: from 20.000Nm (500 Dtx) up to 5.000Nm (2000 Dtx). Water Blocking Swellable Soft Yarns for power cable: from 5.000Nm (2000 Dtx) up to 160Nm (65.000 Dtx).
Water blocking swellable soft yarns
Soft Super Absorbing Fiber (SAF™) is the key component in Water Blocking Swellable SAF™ Soft Yarns, which are usually blended with other synthetic fibers such as polyester, nylon, to add strength or additional functionality. The SAF™ content does not shed when the yarns are being cut and spliced for use. Water Blocking Swellable SAF™ Soft Yarns protect power, telecommunication and special cables by rapidly absorbing water at the point of damage. Upon contact with water, the yarn will swell and form an impermeable barrier.
Key features
- Rapid water absorption. Absorbs 200x own weight.
- High swelling speed up to 75 ml/g/1st min.
- High tensile strength and resistant to operations. Highly temperature stable.
- Easy integration and processing. Dry diameter from 0.5mm up to 30mm.

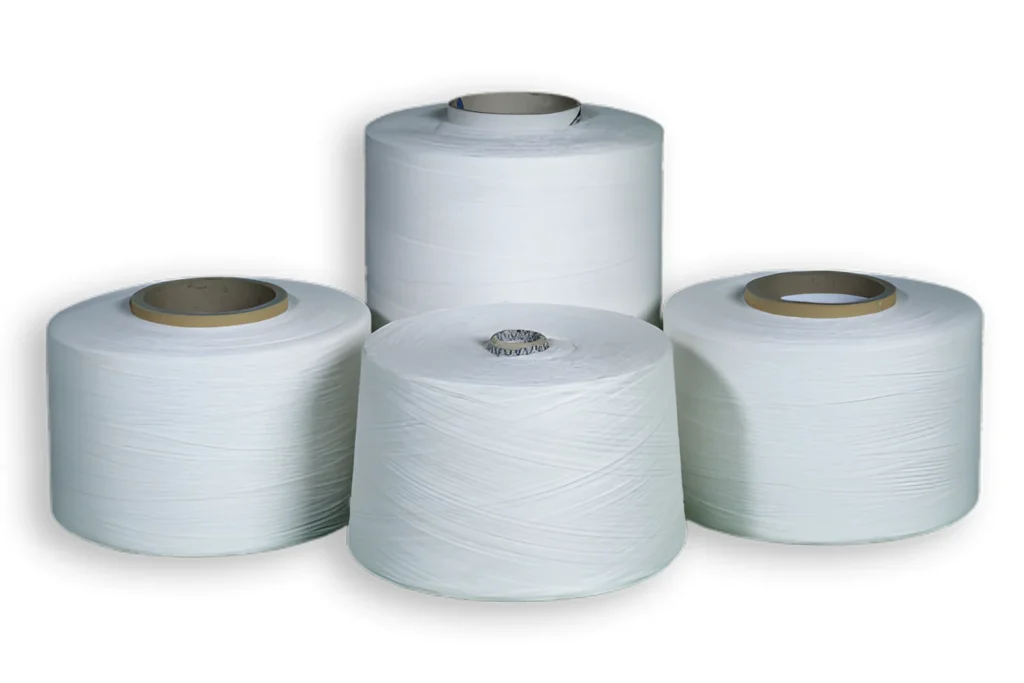

- Spooling forms: SAF™ Yarns are supplied on cylindrical or cone bobbins.
Water blocking swellable
spun soft yarns
(small diameters)
| Property | Unit | ABST-5.000 | ABST-10.000 | ABST-15.000 | ABST-20.000 | TEST METHOD |
|---|---|---|---|---|---|---|
| Mass per unit lenght | g/100m | 20 | 10 | 6.6 | 5 | ISO–2060 |
| Tensile Strenght | N | 38 | 15 | 9 | 7 | ISO–2062 |
| Elongation | % | 7 | 10 | 10 | 10 | ISO–2062 |
| Absorption Speed | ml / gr / 1’00’’ | 38 | 35 | 35 | 35 | Gili Test 10 |
| Absorption Capacity | ml / gr / 5’00’’ | 39 | 36 | 36 | 36 | Gili Test 11 |
| Dry Diameter | mm | 0.60 | 0.40 | 0.30 | 0.25 | Gili Test 12 |
| Wet Diameter | mm | 1.50 | 0.95 | 0.75 | 0.65 | Gili Test 14 |
| Short Term and Long Term Stability | °C | 150°C–230°C | 150°C–230°C | 150°C–230°C | 150°C–230°C | Gili Test 5 |
Composition
Polyacrilate Swellable Fibers
Polyamide 6.6 Fibers
Polyester Support Fibers
Application
Water Blocking Swellable Filler Soft Yarns for the centralmembers of the cable, longitudinal application or reinforcement layers around the central members. Can be customized as per individual requirements.
| Parameter | ABST-5.000 | ABST-10.000 | ABST-15.000 | ABST-20.000 |
|---|---|---|---|---|
| Weight, mt/Kg | 5.000 | 10.000 | 15.000 | 20.000 |
| Denier, gr / 9000 mt | 1.800 | 900 | 600 | 450 |
| Tex | 200 | 100 | 66.67 | 50 |
| Weight Coils, Kg | 3 | 3 | 3 | 3 |
| mt per Coil | 15.000 | 30.000 | 45.000 | 60.000 |
| Diameter ID, mm | 55 | 55 | 55 | 55 |
| Diameter OD, mm | 260 | 260 | 260 | 260 |
| Height, mm | 170 | 170 | 170 | 170 |
Water blocking swellable soft yarns
| Property | Unit | ABST-1.000 | ABST-2.000 | ABST-3.500 | ABST-5.000 | TEST METHOD |
|---|---|---|---|---|---|---|
| Mass per unit lenght | g/100m | 100 | 50 | 28,5 | 20 | ISO–2060 |
| Tensile Strenght | N | 100 | 70 | 40 | 38 | ISO–2062 |
| Elongation | % | 10 | 10 | 10 | 10 | ISO–2062 |
| Absorption Speed | ml / gr / 1’00’’ | 45 | 40 | 39 | 38 | Gili Test 10 |
| Absorption Capacity | ml / gr / 5’00’’ | 50 | 45 | 42 | 40 | Gili Test 11 |
| Dry Diameter | mm | 2 | 1,3 | 0,8 | 0,6 | Gili Test 12 |
| Wet Diameter | mm | 6,5 | 4,3 | 2,25 | 1,5 | Gili Test 14 |
| Short Term and Long Term Stability | °C | 150°C–230°C | 150°C–230°C | 150°C–230°C | 150°C–230°C | Gili Test 5 |
Composition
Polyacrilate Swellable Fibers
Polyamide 6.6 Fibers
Polyester Support Fibers
Nylon & Polyester Yarn Strenght Members
Application
Water Blocking Swellable Soft Yarns for the central members of the cable, longitudinal application or reinforcement layers around the central members, helical application. Can be customized as per individual requirements.
| Parameter | ABST-1.000 | ABST-2.000 | ABST-3.500 | ABST-5.000 |
|---|---|---|---|---|
| Weight, mt/Kg | 1.000 | 2.000 | 3.500 | 5.000 |
| Denier, gr / 9000 mt | 9.000 | 4.500 | 2.570 | 1.800 |
| Tex | 1.000 | 500 | 285 | 200 |
| Weight Coils, Kg | 6 | 6 | 6 | 6 |
| mt per Coil | 6.000 | 12.000 | 21.000 | 30.000 |
| Diameter ID, mm | 54 | 54 | 54 | 54 |
| Diameter OD, mm | 260 | 260 | 260 | 260 |
| Height, mm | 280 | 280 | 280 | 280 |
Water blocking
swellable soft yarns
(thick diameters)
| Property | Unit | ABST-175 | ABST-200 | ABST-350 | ABST-400 | ABST-500 | TEST METHOD |
|---|---|---|---|---|---|---|---|
| Mass per unit lenght | g/100m | 570 | 500 | 285 | 250 | 200 | ISO–2060 |
| Tensile Strenght | N | 180 | 180 | 170 | 160 | 120 | ISO–2060 |
| Elongation | % | 12 | 12 | 12 | 12 | 12 | ISO–2060 |
| Absorption Speed | ml / gr / 1’00’’ | 60 | 60 | 60 | 60 | 60 | Gili Test 10 |
| Absorption Capacity | ml / gr / 5’00’’ | 70 | 70 | 70 | 70 | 70 | Gili Test 11 |
| Dry Diameter | mm | 6,5 | 6 | 4 | 3,75 | 3 | Gili Test 12 |
| Wet Diameter | mm | 15 | 15 | 10 | 10 | 8 | Gili Test 14 |
| Short Term and Long Term Stability | °C | 150°C–230°C | 150°C–230°C | 150°C–230°C | 150°C–230°C | 150°C–230°C | Gili Test 5 |
Composition
Polyacrilate Swellable Fibers
Polyamide 6.6 Fibers
Polyester Support Fibers
Polyester Yarn Strenght Members
Application
Water Blocking Swellable Filler Soft Yarns for the central members of the cable, longitudinal application or reinforcement layers around the central members. Can be customized as per individual requirements.
| Parameter | ABST-175 | ABST-200 | ABST-350 | ABST-400 | ABST-500 |
|---|---|---|---|---|---|
| Weight, mt/Kg | 175 | 200 | 350 | 400 | 500 |
| Denier, gr / 9000 mt | 51.429 | 45.000 | 25.750 | 22.500 | 18.000 |
| Tex | 5.714 | 6.000 | 2.860 | 2.475 | 2.000 |
| Weight Coils, Kg | 6,8 | 6,8 | 6,8 | 6,8 | 8 |
| mt per Coil | 1.200 | 1.350 | 2.380 | 2.720 | 4.000 |
| Diameter ID, mm | 54 | 54 | 54 | 54 | 54 |
| Diameter OD, mm | 260 | 260 | 260 | 260 | 260 |
| Height, mm | 280 | 280 | 280 | 280 | 280 |
