High-performance flame retardant tape and flame retardant electrical tape for industrial cables. Fire-resistant solutions for maximum safety. JGILI Manufacturer.

FLAME RETARDANT TAPE

Flame Retardant

Technical protective tape with selfextinguishing properties, designed for use in electrical systems where an effective barrier against the spread of fire is required.

Manufactured from PVC or polyester with halogenated or halogen-free (LSZH) additives, it complies with international standards for f lammability and electrical safety.

Flame Retardant Tape
MORE DETAILS

Power, control, and signal cables in public and industrial buildings. Railway infrastructure, tunnels, subways, and data centers. Emergency, alarm, and evacuation systems.

Key uses: Grouping, insulation, and marking of electrical conductors in control panels, industrial installations, data centers, HVAC systems, and structured cabling.

Suitable for use in confined spaces, vertical installations, and environments where fire retardancy and low toxicity in case of combustion are required.

Greater safety in case of fire: Significantly reduces the risk of flames spreading through the wiring.

Quick and reliable installation: Its excellent adhesion allows for efficient application, even on uneven or damp surfaces.

Risk reduction in confined spaces: Especially useful in environments where the accumulation of smoke and toxic gases is critical (technical rooms, data centers, vehicles).

Soft Super Absorbing Fiber (SAF™) is the key component in Water Blocking Swellable SAF™ Soft Yarns, which are usually blended with other synthetic fibers such as polyester, nylon, to add strength or additional functionality.

The SAF™ content does not shed when the yarns are being cut and spliced for use. Water Blocking Swellable SAF™ Soft Yarns protect power, telecommunication and special cables by rapidly absorbing water at the point of damage. Upon contact with water, the yarn will swell and form an impermeable barrier.

Technical tape made from flame-retardant PVC or polyester with self-extinguishing properties, compliant with UL 510 and IEC 60454. It offers high dielectric strength (>6 kV), excellent adhesion in demanding environments thanks to its synthetic rubber or acrylic adhesive, and is available in LSZH versions for low smoke and toxic gas emission. Its operating range is from 10°C to +80°C, withstanding up to 105°C in peaks. It has high mechanical and chemical resistance, ideal for insulating and protecting cables in critical electrical installations.

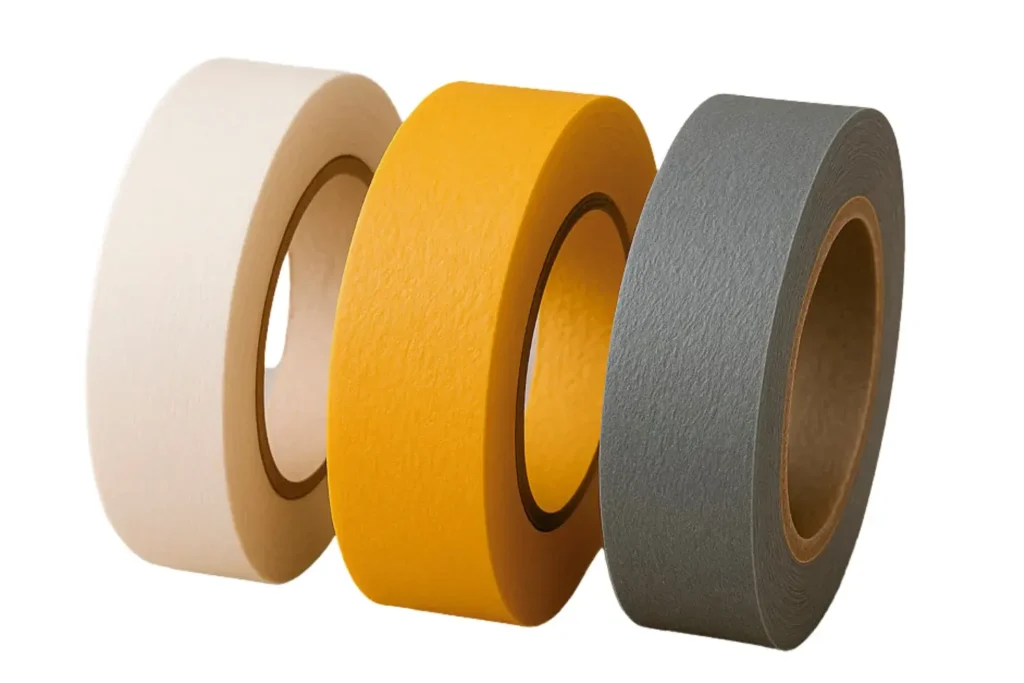

Flame Retardant Tape: High-Performance Thermal Barrier
TECHNICAL INFORMATION

Flame retardant tape

Composition

Polyester Non Woven Fabric
Halogen-Free Flame
Retardant Adhesive

Application

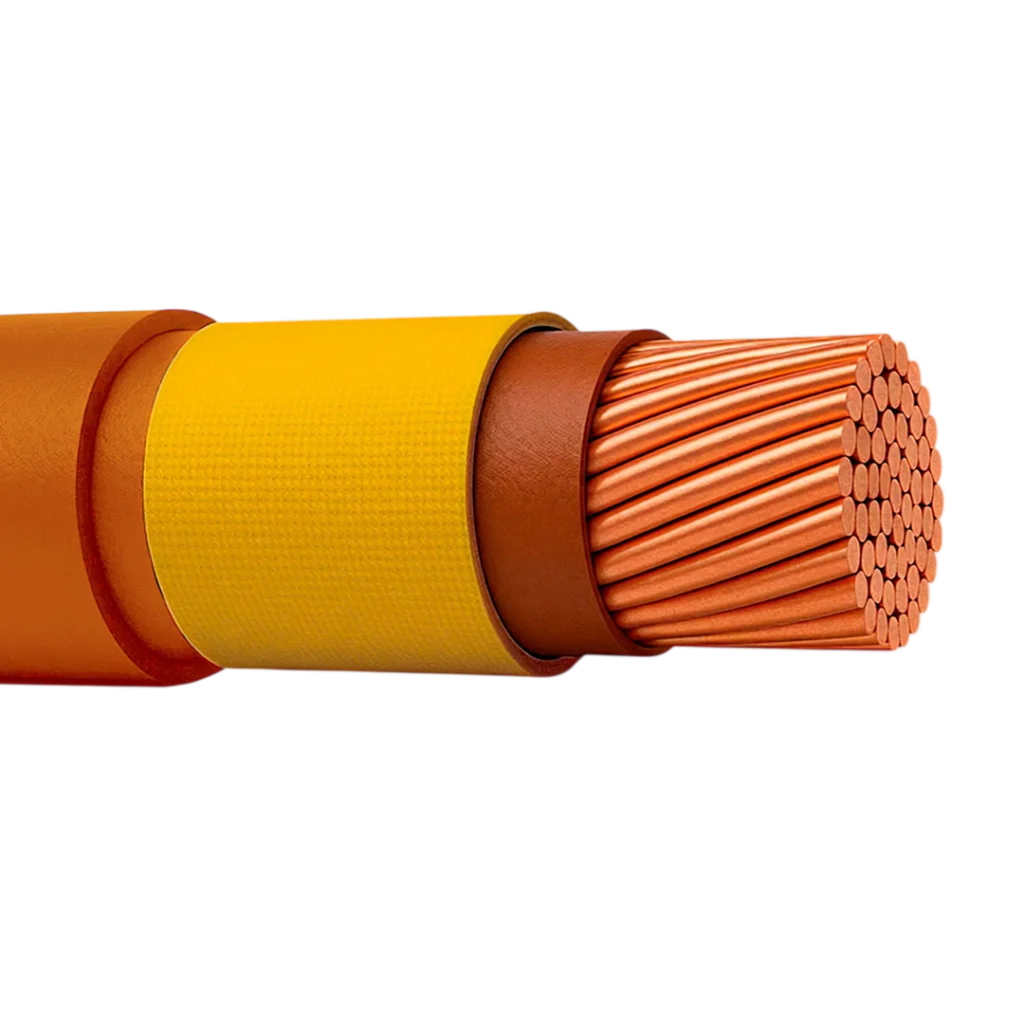

Separation and binding under flame-retardant sheath/jacket.
Fire barrier for cable.
Can be customized as per individual requirements.

Property Unit Nominal Value FR-NWT 110 Nominal Value FR-NWT 150 Tolerance Test Method
Thickness mm 0,20 0,20 +/- 0,06 ISO 9073-2
Weight g/m2 110 160 +/- 10 ISO 9073-1
Tensile Strength N/cm 25 25 ISO 9073-3
Elongation % 10 10 ISO 9073-3
Limited Oxygen Index % 26 30 ASTM D 2863

Roll and spool dimensions

Slit width (mm) 20–500
Max. OD (mm) 480–800
ID (mm) 76, 102, 152
